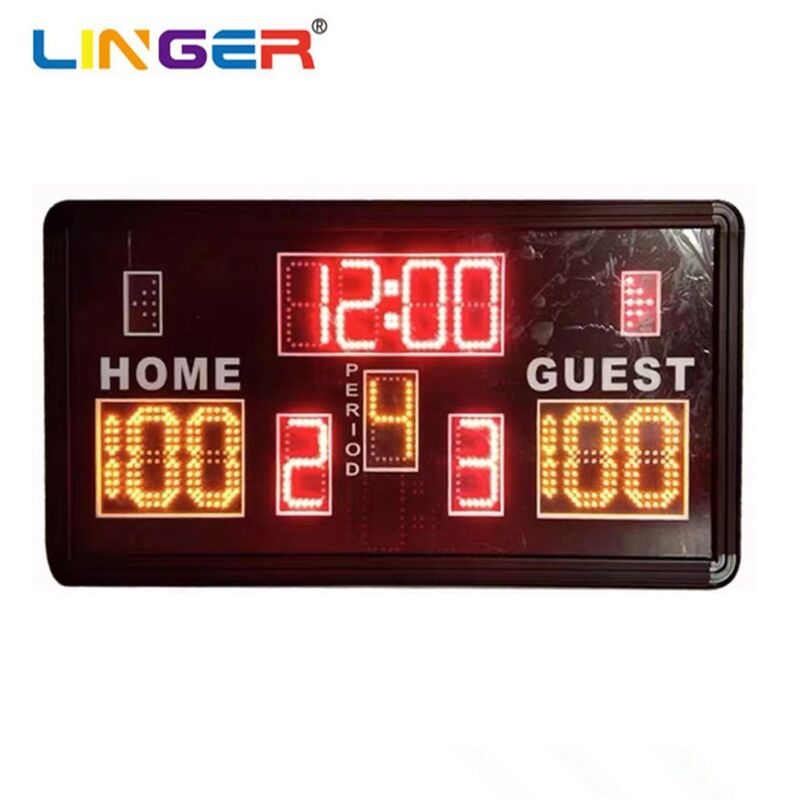

900MM X 450MM Desktop Small Scoreboard with rechargeable 18650 Battery
Datos del producto:
| Lugar de origen: | Jiaxing, Zhejiang, China (continente) |
| Nombre de la marca: | LG-Linger |
| Certificación: | CE / ROHS |
| Número de modelo: | LG-18D500R |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | 1unit en 1 carton / estuche de madera |
| Tiempo de entrega: | 7 - 10 días |
| Condiciones de pago: | T/T, Unión Occidental, Paypal |
| Capacidad de la fuente: | 100unidades/ por mes |
|
Información detallada |
|||
| Color LED: | Rojo + amarillo | Tipo: | Multimarcador |
|---|---|---|---|
| Material del marco: | gabinete de hierro | Tipo de operación: | Caja de botones de PVC - Tipo inalámbrico |
| tarjeta de circuito impreso: | FR4 | Tamaño de los dígitos: | 150mm+100mm |
| Uso: | Exterior | Voltaje de entrada: | El valor de las emisiones de CO2 |
Descripción de producto
INTRODUCTION
Introducing our compact and versatile desktop scoreboard, perfectly sized at 900mm x 450mm for clear visibility while saving valuable space. Designed for ultimate convenience, it features a built-in rechargeable 18650 battery system, eliminating the need for constant external power and enabling cordless operation for enhanced portability and tidy setup. Ideal for board games, small sports clubs, classrooms, or hospitality venues, this user-friendly scoreboard offers a reliable and modern way to track scores for any event.
DIGIT SIZE OPTION
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
DATA SHEET
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Yellow |
| Scoreboard Size | 900mm L x 450mm H x 90mm T |
| Digit Size | 6'' 150mm + 4'' 100mm |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAC
Q1: What is the main advantage of the built-in 18650 battery?
A: The integrated rechargeable 18650 battery provides complete cordless freedom, allowing you to place the scoreboard anywhere without being limited by power outlets. This ensures a clean setup and makes it easy to move and store.
Q2: Is the 900mm x 450mm size suitable for my needs?
A: This desktop size offers an excellent balance. It's large enough for clear, across-the-room visibility in settings like a small bar, classroom, or club, yet compact enough to not dominate a table or counter space.
Q3: Where can this scoreboard typically be used?
A: It's incredibly versatile. Perfect for pubs, game cafes, small sports tournaments (like darts or pool), school activities, trivia nights, home game rooms, and even small retail environments for daily counts or promotions.
Q4: How does the product design prioritize user experience?
A: The design focuses on simplicity and hassle-free operation. The rechargeable battery removes cable clutter, the size is optimized for utility, and the controls are designed to be intuitive for quick score updates during any event.
Key Features:
Cordless & Clutter-Free Operation: The integrated rechargeable 18650 battery system eliminates the need for constant mains power, allowing for flexible placement on any desk or counter without unsightly cables, enabling a tidy and professional setup.
Space-Optimized Design: With dimensions of 900mm x 450mm, it offers an ideal balance—large enough for clear, long-distance readability in various venues, yet compact enough to fit conveniently on standard tables without occupying excessive space.
Enhanced Portability & Versatility: The combination of a manageable size and a long-lasting rechargeable battery makes it easy to transport and use in multiple locations, seamlessly adapting to environments like pubs, classrooms, game cafes, and small sports clubs.
User-Centric Convenience: Designed for simplicity, it provides a reliable, modern scoring solution that is quick to set up and operate, allowing users to focus on their event or game without technical distractions.
