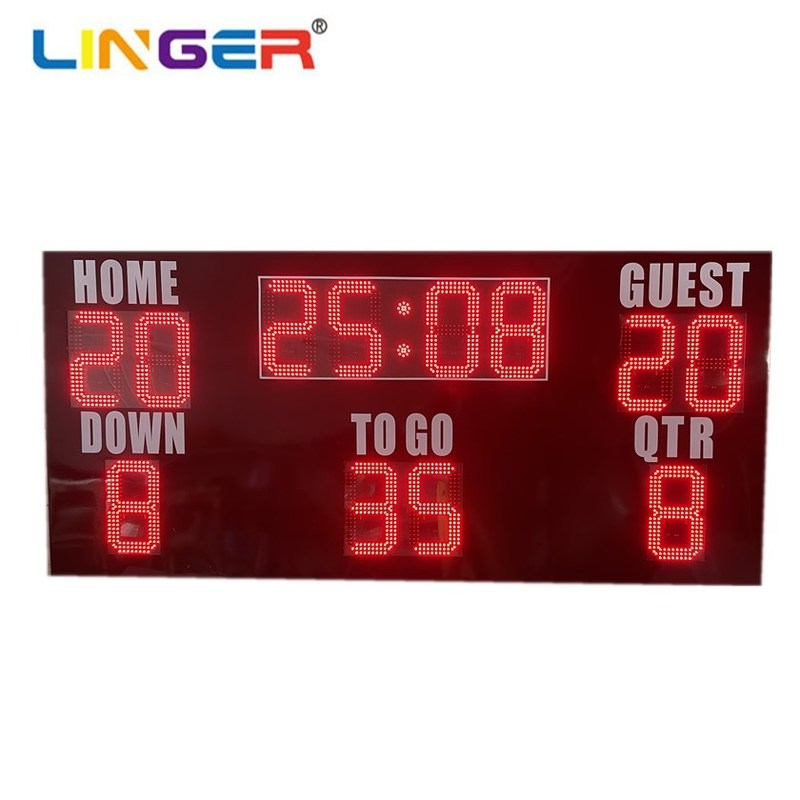

American Football Scoreboard with Main Clock/Score/Down/Togo/Qtr
Datos del producto:
| Lugar de origen: | Jiaxing, Zhejiang, China (continente) |
| Nombre de la marca: | LG-Linger |
| Certificación: | CE / ROHS |
| Número de modelo: | LG-AFL19D-VTN-Y |
Pago y Envío Términos:
| Cantidad de orden mínima: | 1 unidad |
|---|---|
| Precio: | negotiable |
| Detalles de empaquetado: | 1unit en 1 carton / estuche de madera |
| Tiempo de entrega: | 7 - 10 días |
| Condiciones de pago: | T/T, Western Union, PayPal |
| Capacidad de la fuente: | 100unidades/ por mes |
|
Información detallada |
|||
| Color LED: | Color rojo | Tipo: | Fútbol americano |
|---|---|---|---|
| Material de marco: | Acero / Acero / Aluminio | Tipo de operación: | Caja de botones de PVC - Tipo inalámbrico |
| tablero de acrílico: | Espesor de 5 mm | Tamaño de los dígitos: | altura de 300m m |
| Uso: | Interior y al aire libre | Voltaje de entrada: | El valor de las emisiones de CO2 |
Descripción de producto
Designed for the dynamic flow of American football, this professional scoreboard features a clear and intuitive layout centered on the game's essential metrics. The large main game clock and prominent score display ensure everyone is informed of the critical status, while dedicated sections for down, distance to go, and quarter keep players, coaches, and fans fully engaged with every strategic play. Built with high-visibility LED technology, it delivers excellent readability from any angle in stadiums or fields. Ideal for high schools, colleges, and community leagues, this scoreboard combines robust functionality with straightforward operation, making it an indispensable asset for enhancing the game-day experience.
DIGIT SIZE OPTION
| DIGIT SIZE | DIGIT HEIGHT(mm) | DIGIT WIDTH(mm) | LED QTY(pcs) | VOLTAGE |
|---|---|---|---|---|
| 4'' | 124 | 75 | 42 | DC5V |
| 6'' | 161 | 103 | 64 | DC5V |
| 8'' | 201 | 119 | 98 | DC5V/12V |
| 10'' | 254 | 152 | 140 | DC5V/12V |
| 12'' | 304 | 177 | 182 | DC5V/12V |
| 15'' | 381 | 216 | 245 | DC5V/12V |
| 16'' | 412 | 235 | 350 | DC12V |
| 20'' | 500 | 281 | 434 | DC12V |
| 24'' | 600 | 350 | 581 | DC12V |
| 30'' | 750 | 438 | 840 | DC12V |
DATA SHEET
| Feature | Specification |
|---|---|
| Digit Color Option (Single Color) | Red /Green/Yellow/White/Blue |
| Digit Size Option | 4''/6''/8''/10''/12''/13''/15''/16''/20''/24''/30'' |
| Product Option | With Iron Steel Cabinet or Only Component |
| Led Brightness | 4000mcd - 9000mcd |
| Led Life | > 100000 hours |
| Digit PCB | FR4 |
| Digit PCB Thickness | 1.6mm |
| Wireless Controller | Wireless Controller Remote / PC software |
| Communication Option | RF (470mhz / 433mhz) / RS485 |
| Wireless Range | >250meters |
| Brightness Control | 6 Levels |
| Wireless Controller Remote Power | 1.5V AAA Alkaline battery / 9V Battery |
| Front Acrylic Board | Thickness 5mm -9mm |
| Iron Cabinet | Thickness 1.2mm Steel Plate |
| Input Voltage | AC110V ~ AC220V 50/60HZ |
| Digit DC Power | DC5V / DC12V |
| Power Consumption | < 60Watts |
| Painting of Iron Case | Outdoor anti-fading and anti-rust spray paint |
| Operating Temperature | -20°C to +80°C |
| Waterproof | IP67 |
| Warranty | 1-2Years |
FAC
Q1: What core game information does this scoreboard display most prominently?
A: The display is strategically designed to highlight the most critical live-game data. The large central Main Clock and Score are always the focal points. Directly beneath or adjacent, you'll find the crucial situational stats: Down, Distance to Go (Yards), and the current Quarter.
Q2: How easy is it for the operator to manage the down and distance during a fast-paced game?
A: Extremely easy. The operator uses a simple remote control , clearly labeled buttons for incrementing the down (1st, 2nd, 3rd, 4th) and updating the distance to go. A single click accurately advances the display, ensuring the information on the field is always synchronized with the officiating crew without any delay.
Q3: Is the main game clock designed for the specific stop-start nature of American football?
A: Absolutely. The scoreboard's control system includes specialized functions tailored for football. The operator can easily start, stop, and reset the main game clock with a single button to accommodate timeouts, incomplete passes, and other stoppages, ensuring precise timekeeping that is essential for the game's strategy
Key Features:
-
Unmatched Clarity for Critical Game-Day Data
Our scoreboard is strategically designed to present the most vital information—Main Game Clock, Score, Down, Distance to Go, and Quarter—with maximum clarity. High-intensity, anti-glare LEDs ensure these essential metrics are visible from every seat in the stadium, under any lighting condition, keeping players, coaches, and fans perfectly informed.
-
Intuitive, Error-Proof Operation
We've eliminated complexity. The simplified remote control, dedicated buttons for managing the game clock, updating downs, and setting the distance. This user-centric design allows volunteers or staff to operate the scoreboard confidently, minimizing errors and ensuring the display always reflects the accurate on-field situation.
-
Built for the Rigors of Gridiron Football
Engineered specifically for the stop-start nature of American football, the control system includes specialized functions for easy clock management during timeouts and play reviews. Housed in a rugged, weatherproof cabinet, the scoreboard delivers reliable performance season after season, rain or shine.
-
A Professional Presence for Any Venue
With its sleek, sport-specific design and crisp display, this scoreboard instantly elevates the atmosphere of any game. It brings an authentic, professional feel to high school, college, and community league venues, enhancing the experience for everyone involved.
